Suitable for 6 and 12V, lead acid and lithium batteries, and featuring advanced charging algorithms, in-built diagnostics and multiple safety protocols.

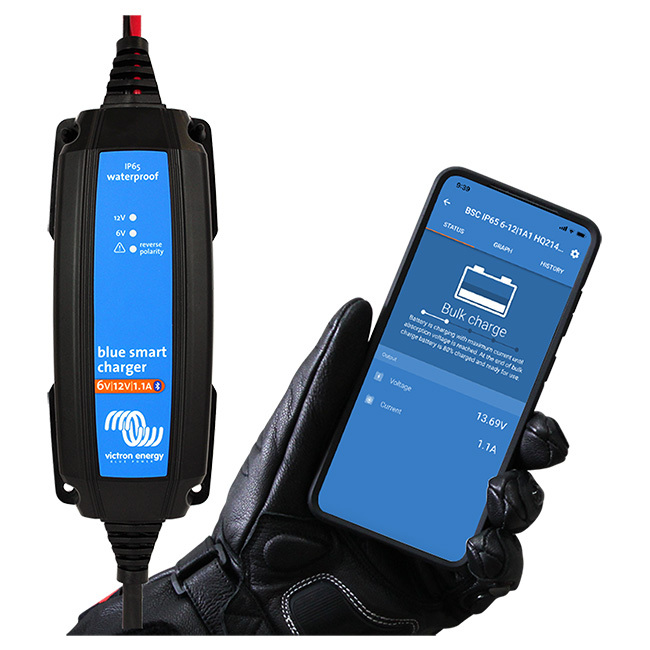

The Blue Smart IP65 range of battery chargers are Bluetooth enabled to provide full control in the palm of your hand. To operate the Power Sports charger, simply download the VictronConnect App, to access the control/ configure functions and view live status and charger history information. The Blue Smart IP65 range provides a professional charging solution for most applications, featuring:
- Water, dust and chemical resistance.
- Seven-step smart charge algorithm.
- Recovery of fully discharged “dead” batteries.
- Automatic power supply function.
- Battery life-enhancing features.
- LiIon* battery mode (LiFePO4).
- Low power mode for smaller batteries.
- Severe cold performance: down to −30°C.

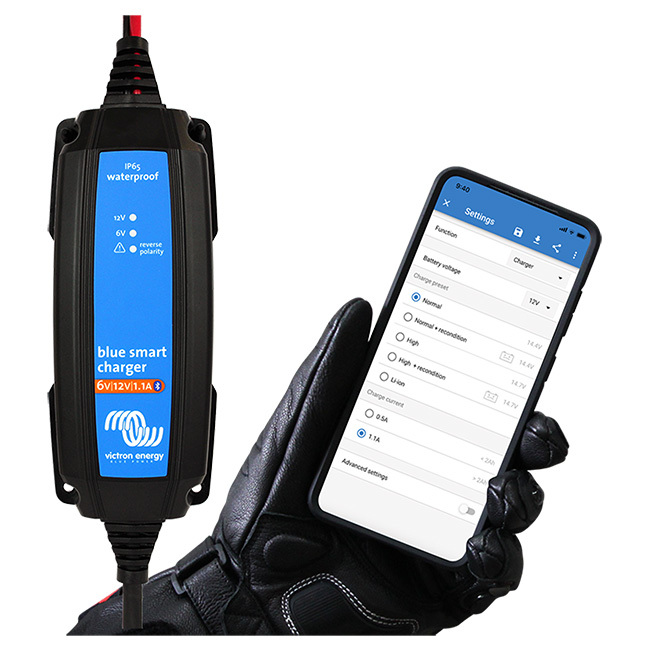

- Setup and configure, readout of voltage and current by Bluetooth Smart.
Specs
- Input voltage and frequency range 100 - 250VAC | 45 - 65Hz
- Efficiency 82%
- Standby power consumption <0.5W
- Charge voltage - Absorption
- Normal: 7.2V | 14.4V
- High: 7.35V | 14.7V
- Li-ion: 7.1V | 14.2V
- Charge voltage - Float
- Normal: 6.9V | 13.8V
- High: 6.9V | 13.8V
- Li-ion: Disabled
- Charge voltage - Storage
- Normal: 6.6V | 13.2V
- High: 6.6V | 13.2V
- Li-ion: 6.75V | 13.5V
- Max output current - Normal mode 1.1A
- Max output current - Low current mode 0.5A
- Max battery capacity (recommended) 32Ah
- Max battery capacity - Maintenance only 300Ah
- Min battery capacity - Normal mode
- Lead-acid: 4Ah
- Lithium: 2Ah
- Min battery capacity - Low current mode
- Lead-acid: 1.2Ah
- Lithium: 1Ah
- Temperature compensation (lead-acid only) 8mV/°C | 16mV/°C
- Charge algorithm 7-stage adaptive
- Power supply mode Yes
- Back current drain 0.1Ah/month (140uA)
- Protection Reverse polarity, output short circuit, over temperature
- Operating temperature -30 to +50°C (full rated output up to 30°C)
- Humidity (non-condensing) Max 95%
- Bluetooth Power -4dBm
- Bluetooth Frequency 2402 - 2480MHz
Enclosure
- Battery connection 1.5m red and black cable
- AC connection 1.5m cable with CEE 7/16 or AS/NZS 3112 plug
- Protection category IP65 (splash and dustproof)
- Weight 0.4kg
- Dimensions (h x w x d) 38 x 64 x 153mm
